| Specification |
Model |

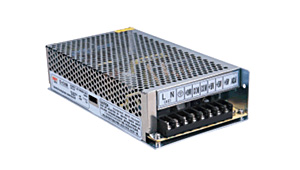

| Q-120B |
| CH1主回路 |
CH2次回路 |
CH3次回路 |
CH4主回路 |
| DC output |
5V 11A |
12V 4A |
-5V 1A |
-12V 1A |
| Wave and noise |
80mV |
120mV |
80mV |
120mV |
| Inlet stability |
±0.5% |
±1% |
±1% |
±1% |
| Load stability |
±0.5% |
±5% |
±5% |
±5% |
| Efficiency |
77% |
| Adiustable range for DC voltage |
CH1:+10,-5% |
| AC input voltage range |
88~132VAC/176~264VAC Selected by switch 47~63Hz 120~370VDC |
| AC Inrush current |
Cold-start current 35A/230VAC |
| OverLoad protection |
105%～135% hiccup mode ,auto-recovery |
| Over-voltage protection |
CH1:5.75～6.75VDC |
| Setup,rise,hold up time |
200ms, 50ms,20ms |
| Withstand voltage |
I/P-O/P：3KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv AC 1 minute |
| Isolation resistance |
I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ |
| Working temperature |
-10℃~+50℃ |
| Safety standards |
Design refer to GB4943,UL60950,EN60950 |
| EMC standards |
Design refer to GB9254,EN55022 classA |
| Weight |
0.88kg | |
