| Specification |
Model |

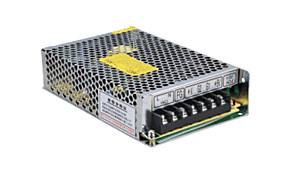

| T-50C |
| CH1主回路 |
CH2次回路 |
CH3次回路 |
| DC output |
5V 4A |
15V 1A |
-15V 1A |
| Wave and noise |
100mVp-p |
120mVp-p |
120mVp-p |
| Inlet stability |
±0.5% |
±0.5% |
±0.5% |
| Load stability |
±1% |
±4% |
±4% |
| Efficiency |
71% |
| Adiustable range for DC voltage |
CH1:+10，-5% |
| AC input voltage range |
85~132VAC /170~264vac Selected by switch 47-63Hz; 240-370VDC |
| AC Inrush current |
Cold-start current 20A/115V 40A/230V |
| OverLoad protection |
105%～150% hiccup mode ,auto-recovery |
| Over-voltage protection |
.................. |
| Setup,rise,hold up time |
200ms,50ms,16ms |
| Withstand voltage |
I/P-O/P：1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv AC 1 minute |
| Isolation resistance |
I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ |
| Working temperature |
-10℃~+50℃ |
| Safety standards |
Design refer to GB4943,UL60950,EN60950 |
| EMC standards |
Design refer to GB9254,EN55022 classA |
| Weight |
0.54kg | |
