Specification |
Model |

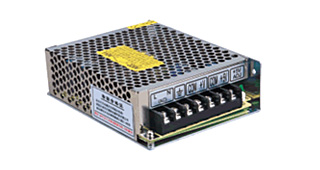

| D-30B |
| CH1主回路 |
CH1主回路 |
| DC output |
5V 2A |
24V 1A |
| Wave and noise |
50mVP-P |
100mVP-P |
| Inlet stability |
±0.5% |
±1% |
| Load stability |
±0.5% |
±4% |
| Efficiency |
74% |
| Adiustable range for DC voltage |
CH1:±10,-5% |
| AC input voltage range |
85~132VAC/170~264VAC Selected by switch 47~63Hz 240~370VDC |
| AC Inrush current |
Cold-start current 18A/115V 36A/230V |
| OverLoad protection |
105%～150% hiccup mode ,auto-recovery |
| Over-voltage protection |
……………… |
| Setup,rise,hold up time |
200ms, 50ms,20ms |
| Withstand voltage |
I/P-O/P：1.5KvAC I/P-FG:1.5KvAC O/P-FG:0.5Kv AC 1 minute |
| Isolation resistance |
I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ |
| Working temperature |
-10℃~+50℃ |
| Safety standards |
Design refer to GB4943,UL60950,EN60950 |
| EMC standards |
Design refer to GB9254,EN55022 classB |
| Weight |
0.4kg | |
