| Specification |
Model |

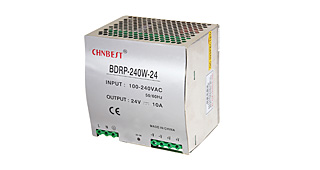

| BDRP-240W-24 |
BDRP-240W-48 |
| DC output |
24V 10A |
48V 5A |
| Wave and noise |
50MVP-P |
50MVP-P |
| Inlet stability |
±0.5% |
±0.5% |
| Load stability |
±1% |
±0.5% |
| Efficiency |
84% |
85% |
| Adiustable range for DC voltage |
±10% |
±10% |
| AC input voltage range |
85-264VAC 47-63HZ 124-370VDC |
| AC Inrush current |
Cold-start current 27A/115VAC 45A/230V |
| OverLoad protection |
105%--150% hiccup mode ,auto-recovery |
| Over-voltage protection |
30--36V for 24Vmodel,54--60V for 48Vmodel |
| Setup,rise,hold up time |
800ms, 40ms, 20ms/230VAC at full load |
| Withstand voltage |
I/P-O/P：3KvAC I/P-FG:1.5Kv O/P-FG:0.5Kv1 minute |
| Isolation resistance |
I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ |
| Working temperature |
~-10℃----+50℃ |
| Safety standards |
Design refer to GB4943,UL60950,EN60950 |
| EMC standards |
Design refer to GB9254,EN55022 classB |
| Weight |
1.2kg |
