| Specification |

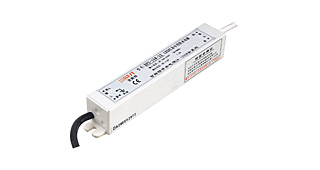

Model |
| BFS-15-12 |
BFS-15-24 |
| DC output |
12V 1.1A |
24V 0.7A |
| Wave and noise |
80mVP-P |
80mVP-P |
| Inlet stability |
±0.5% |
±0.5% |
| Load stability |
±1% |
±0.5% |
| Efficiency |
82% |
83% |
| Adiustable range for DC voltage |
|
|
| AC input voltage range |
90-264VAC 47-63HZ |
| AC Inrush current |
Cold-start current 15A/115V 30A/230V |
| OverLoad protection |
105%--150% hiccup mode ,auto-recovery |
| Over-voltage protection |
121%-142% rated out put voltage |
| Setup,rise,hold up time |
100ms, 60ms, /230VAC at full load |
| Withstand voltage |
I/P-O/P：1.5KvAC I/P-FG:1.5Kv O/P-FG:0.5Kv 1 minute |
| Isolation resistance |
I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ |
| Working temperature |
~-10℃----+50℃ |
| Safety standards |
Design refer to GB4943,UL60950,EN60950 |
| EMC standards |
Design refer to GB9254,EN55022 classB |
| Weight |
0.2kg |
