| Specofication |

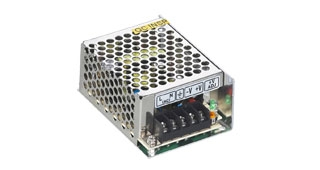

Model |
| BS-25B-5 |
BS-25B-12 |
BS-25B-24 |
BS-25B-48 |
| DC output |
5V 5A |
12V 2A |
24V 1A |
48V 0.5A |
| Wave and noise |
60mVp-p |
80mVp-p |
80mVp-p |
80mVp-p |
| Inlet stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| Load stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| Efficiency |
70% |
75% |
76% |
78% |
| Adjustable range for DC voltage |
±10% |
±10% |
±10% |
±10% |
| AC input voltage range |
88-264VAC 47--63HZ 255-370VAC |
| AC inrush current |
Cold-start current 30A/230V |
| OverLoad protection |
105%--135% hiccup mode,auto-recovery |
| Over-voltage protection |
|
| Setup,rise,hold up time |
200ms 50ms 20ms |
| Withstand voltage |
I/P-O/P：1.5KvAC I/P-FG：1.5Kv O/P-FG：0.5Kv 1minute |
| Isolation resistance |
I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ |
| Working temperature |
~-10℃----+50℃ |
| Safety standards |
Design refer to GB4943，UL60950，EN60950 |
| EMC standards |
Design refer to GB9254，EN55022 Class B |
| Weight |
0.25kg |
